Record Anywhere Using The Presonus Studio 24c Portable Audio Interface

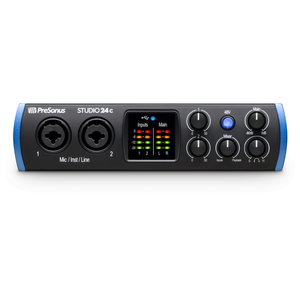

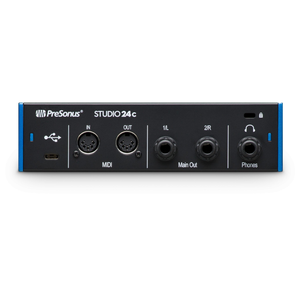

Great for recording studios, mobile musicians, guitarists, podcasters, and live streaming, the bus-powered Studio 24c 2-in, 2-out audio interface features 2 front-panel combo mic/line/instrument inputs with PreSonus XMAX-L solid-state mic preamps, 2 rear-panel line outputs, MIDI I/O, and onboard direct monitoring control. A complete, all-in-one home recording studio, the Studio 24c comes with PreSonus' award-winning Studio One Artist music production software for macOS and Windows.

Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 24c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment.

SPECIFICATIONS

Input/Output

• Simultaneous I/O up to 2 inputs/2 outputs
• 2 Mic/instrument/line inputs with XMAX-L mic preamps
• 2 Balanced 1/4" TRS main outputs
• 1 Stereo headphone output
• MIDI In/Out
• 1 USB-C compatible 2.0 port
• USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers

Meters and Controls

• Mixer knob for low-latency direct input monitoring
• Front-panel level controls for main outputs
• +48V phantom power for condenser microphones (global)
• 4 ladder-style LED level meters (2 input, 2 main output)

Integrated Software

• Studio One Artist
• Studio Magic Plug-in Suite

Digital

• USB-C compatible port (USB 2.0)
• 24-bit resolution
• 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates

Physical

• Road-rugged construction with all-metal chassis and metal knobs
• USB bus-powered

System Requirements

• macOS 10.11 or higher (64-bit only)
• Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
• 4 GB RAM (8 GB or more recommended)
• Windows 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
• Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
• 4 GB RAM (8 GB or more recommended)
• USB-C or USB-A 2.0 port compatibility
• 32 GB hard disk space
• PreSonus Universal Control 2.0 or higher
• Monitor with 1366x768 resolution (high-dpi monitor recommended)
• Multitouch-enabled monitor required for touch operation

Technical

• Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192 kHz
• Converter Resolution: 24 bit
• ADC Converter Dynamic Range: 108 dB
• DAC Converter Dynamic Range: 108 dB

Microphone Inputs

• Maximum Level: +10 dBu (+/-0.5 dBu, min gain)
• Gain Range: 50 dB
• Frequency Response: 20 Hz - 20 kHz (+/- 0.3 dBu, unity gain, unwtd)
• Dynamic Range: 106 dB (A-wtd, min gain)
• THD + N: 0.004% (1 kHz, -1 dBFS, min gain)
• EIN: -126 dBu (A-weighted, 150 Ohms, max gain)
• Input Impedance: 1.4 k Ohms
• Phantom Power: +48 VDC (10 mA total)

Instrument Inputs

• Maximum Level: +19 dBu (min gain)
• Gain Range: 50 dB
• Frequency Response: 20 Hz - 20 kHz (+/- 0.1 dBu, unity gain, unwtd)
• Dynamic Range: 105 dB (A-wtd, unity gain)
• THD + N: 0.002% (1 kHz, min gain)
• Input Impedance: 750 k Ohms

Main Outputs

• Type: 1/4" TRS, Female
• Maximum Level: +10 dBu (1 kHz, unity gain, balanced)
• Frequency Response: 20 Hz - 20 kHz (+/- 0.3 dBu, unity gain, unwtd)
• Dynamic Range: 104 dB (unity gain, unwtd)
• THD + N: 0.001% ( 1 kHz, -1 dBFS, unity gain)

Headphone Outputs

• Maximum Power: 47 mW / channel @ 56 Ohms
• Frequency Response: 20 Hz - 20 kHz (+/- 0.5 dBu, unity gain, unwtd)
• Dynamic Range: 83 dB (A-wtd, 56 Ohm load)
• THD + N: 0.01% (1 kHz, 0 dBFS, loaded)
• Impedance Working Range: 32 Ohms to 300 Ohms

Dimensions

• Height: 1.75" (44 mm)
• Width: 7" (180 mm)
• Depth: 5.5" (144 mm)
• Weight: 2 lbs. (0.9 kg)
