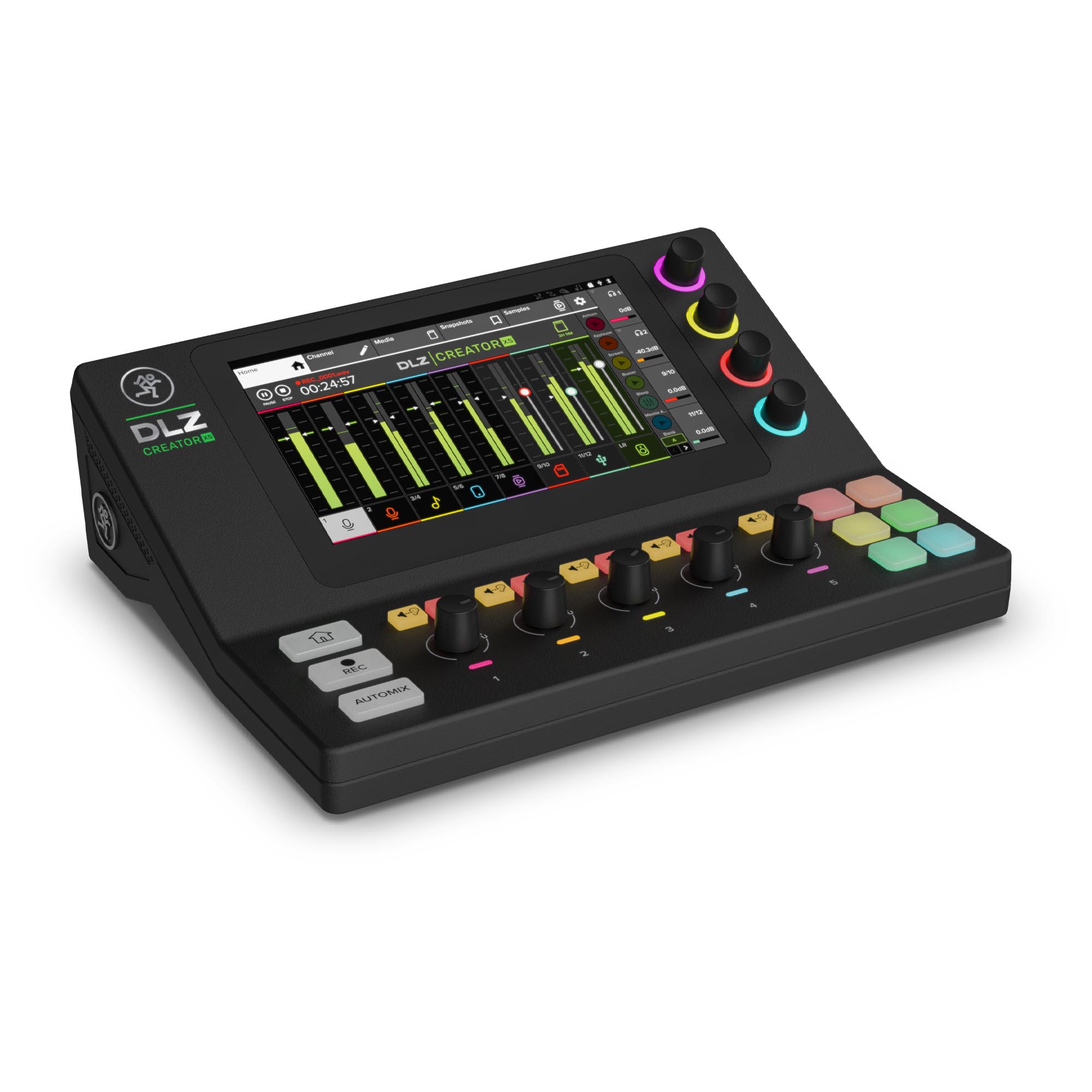

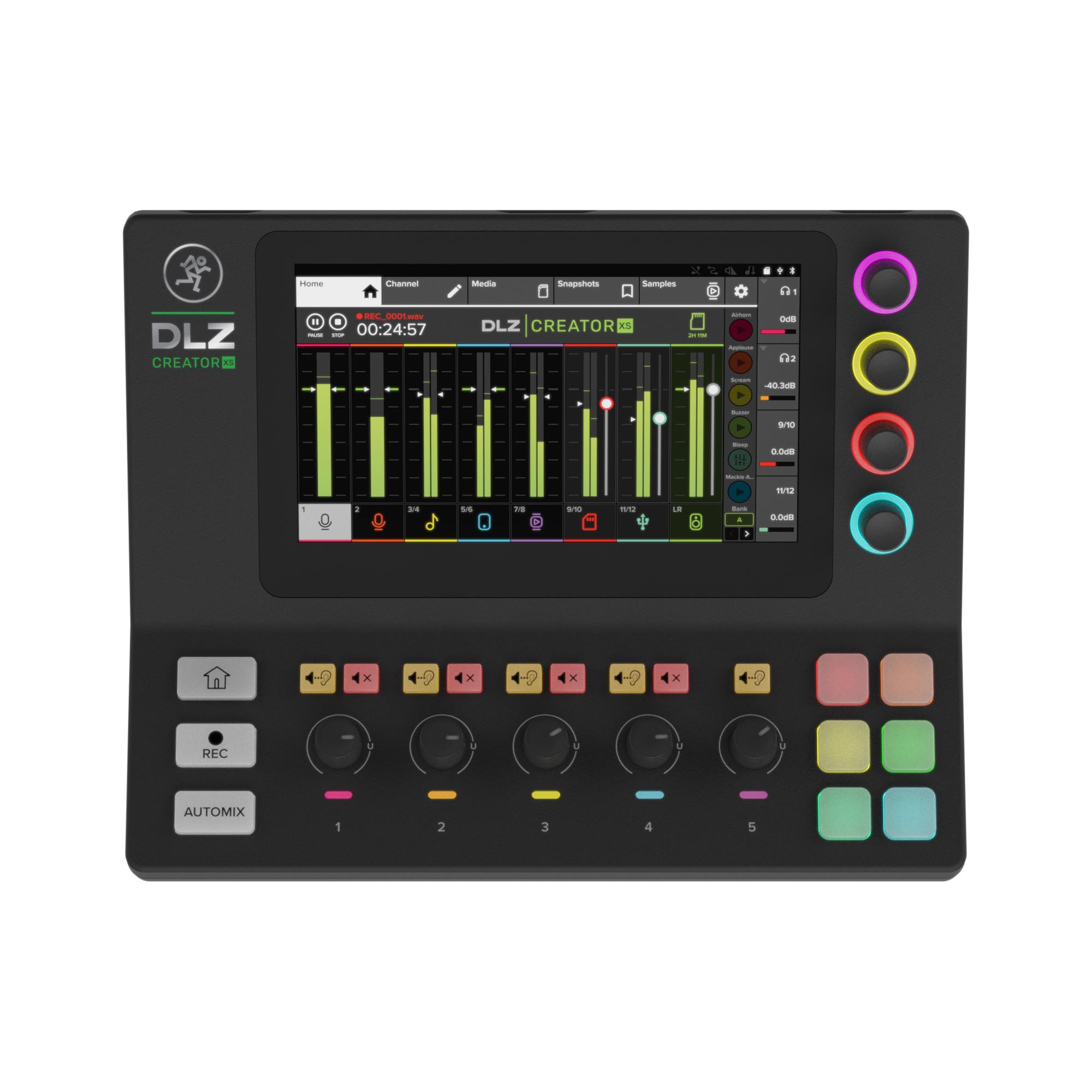

A Portable and Versatile Podcasting Interface - The Mackie DLZ Creator XS Adaptive Digital Streaming Mixer

Inspired in part by smartphone and DSLR cameras that make great results accessible to anyone, DLZ Creator XS transforms the on-screen controls to meet your creative style or skill level—without compromising processing power or sound quality.

• For Podcasting and Streaming
• 3 Creator Modes: Easy, Enhanced, and Pro
• MixAgent Adaptive Audio Assistant

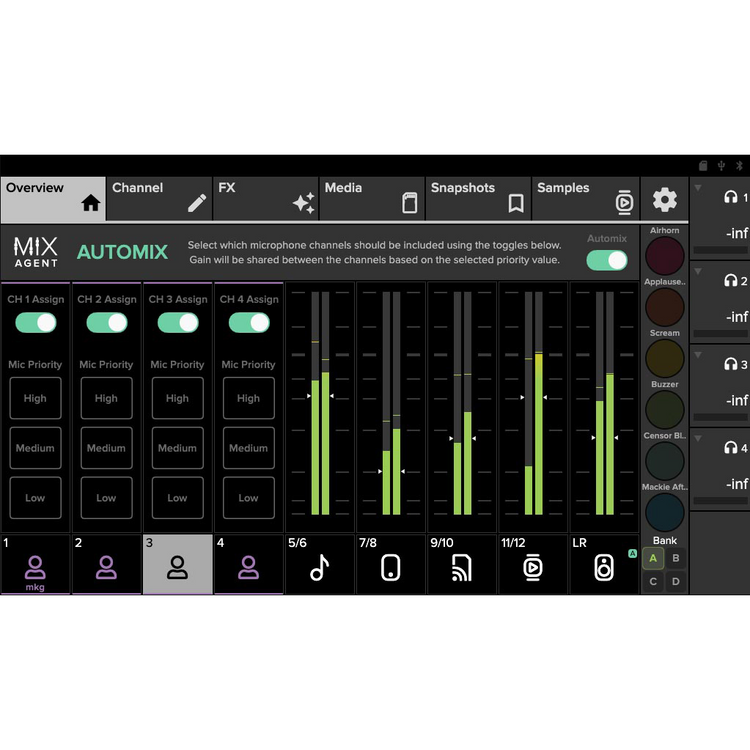

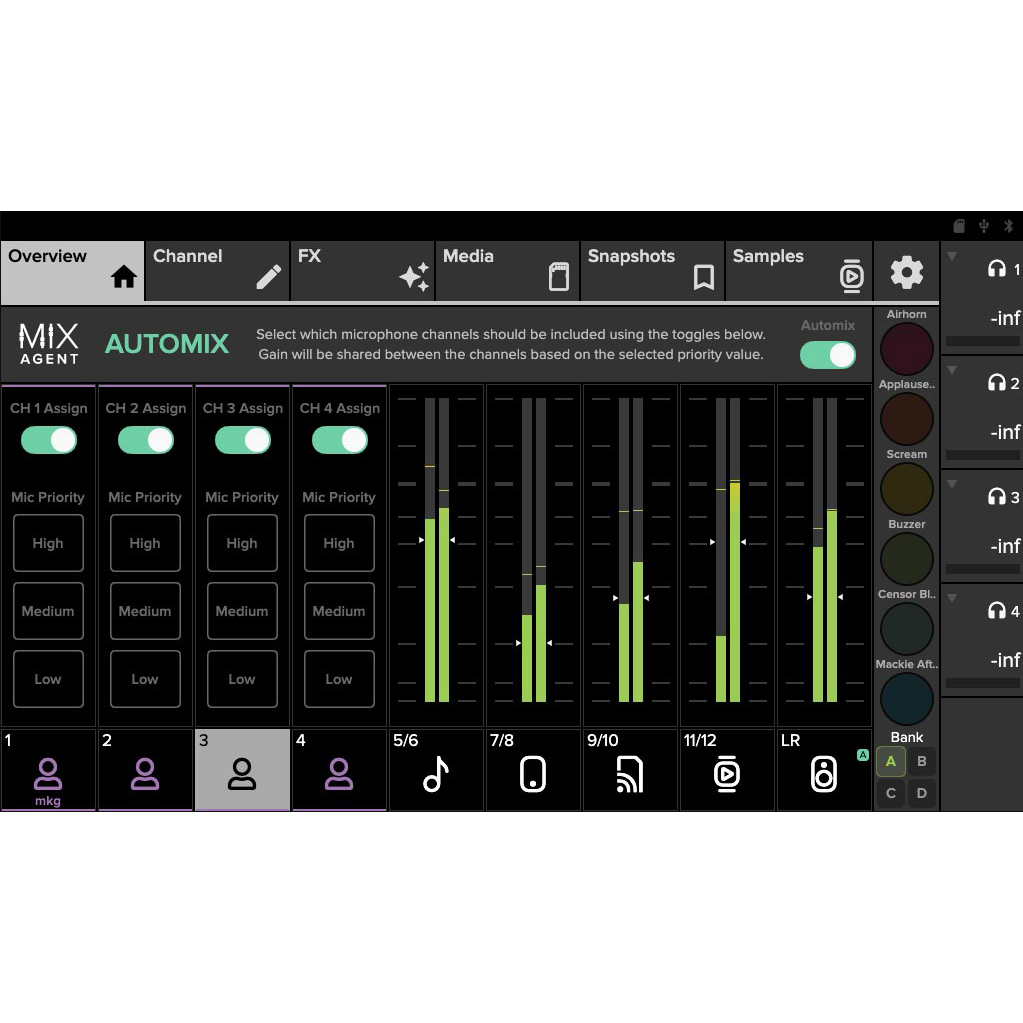

• Automix Function

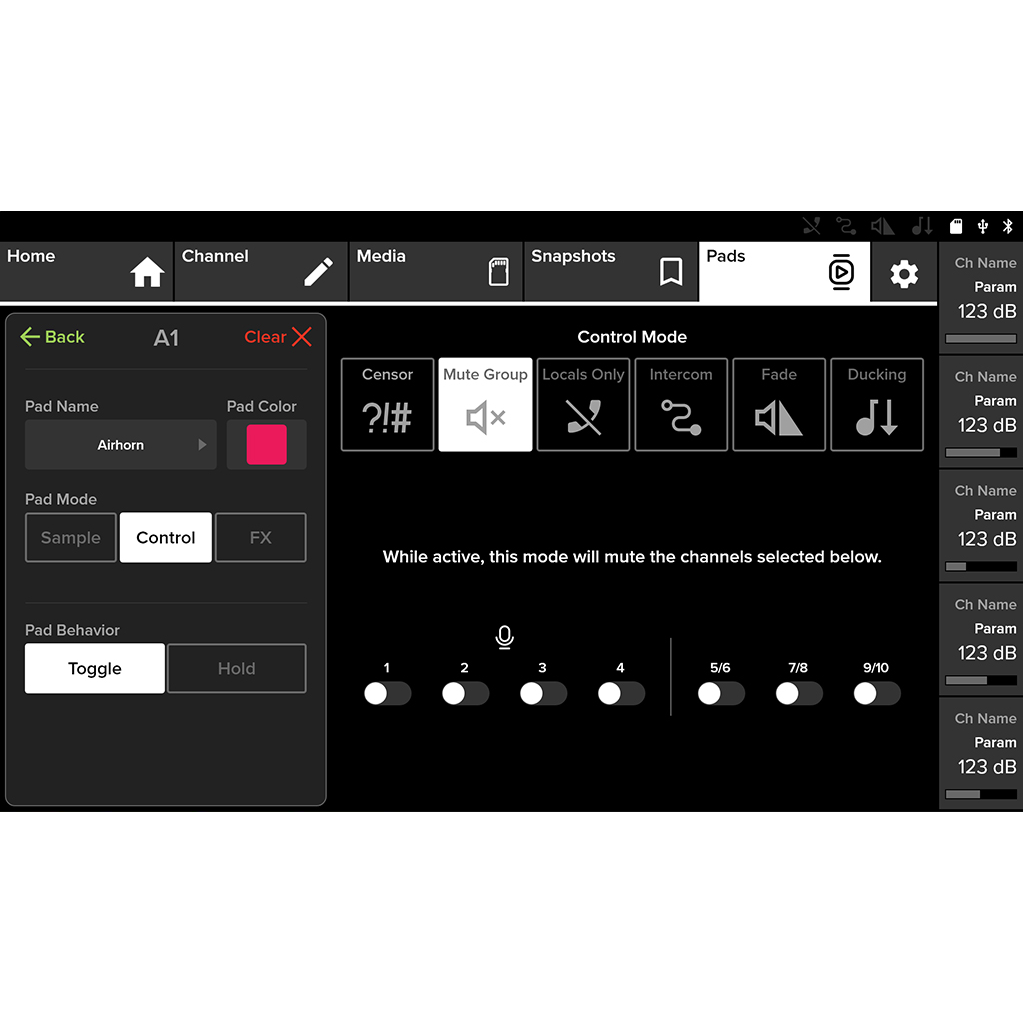

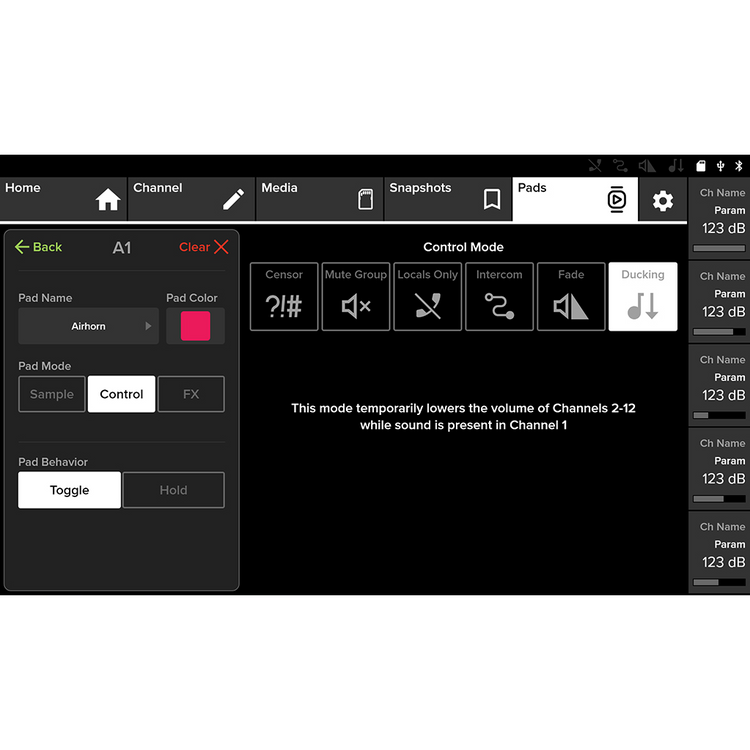

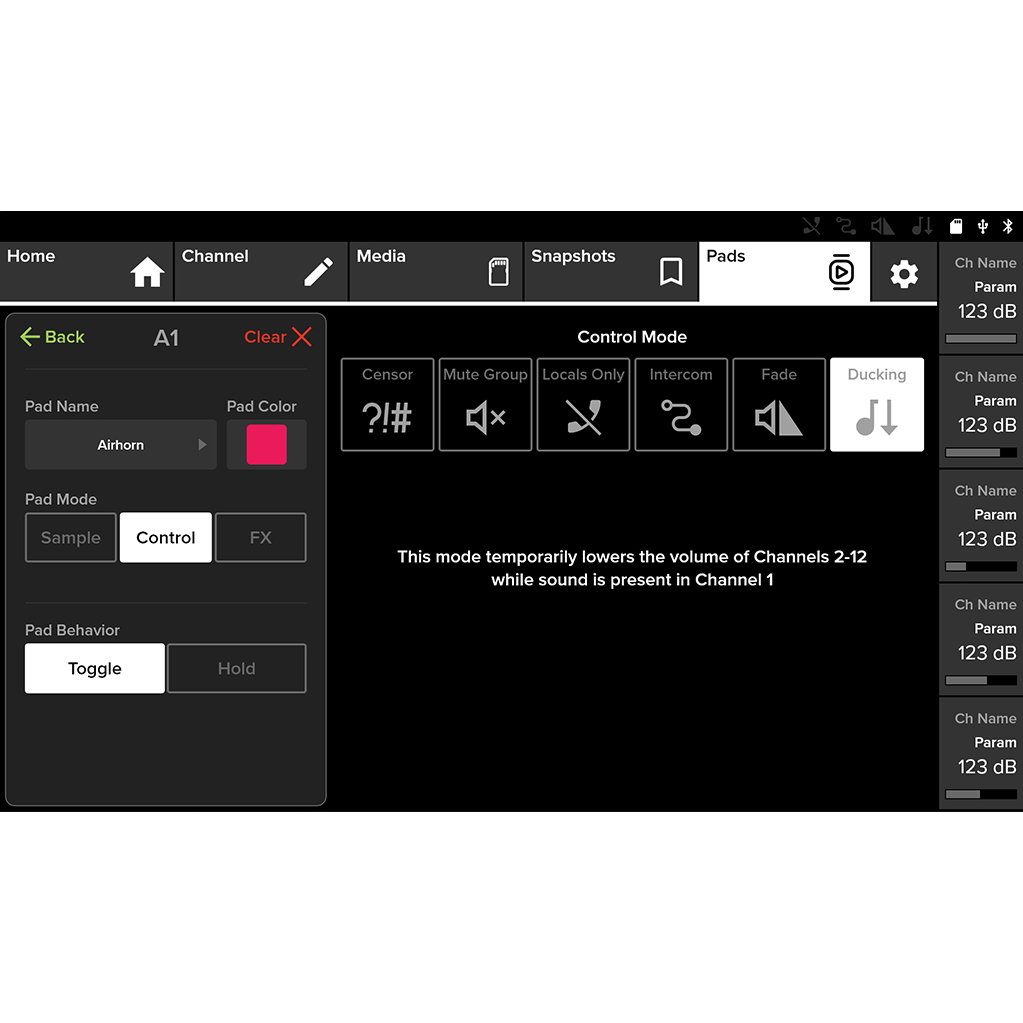

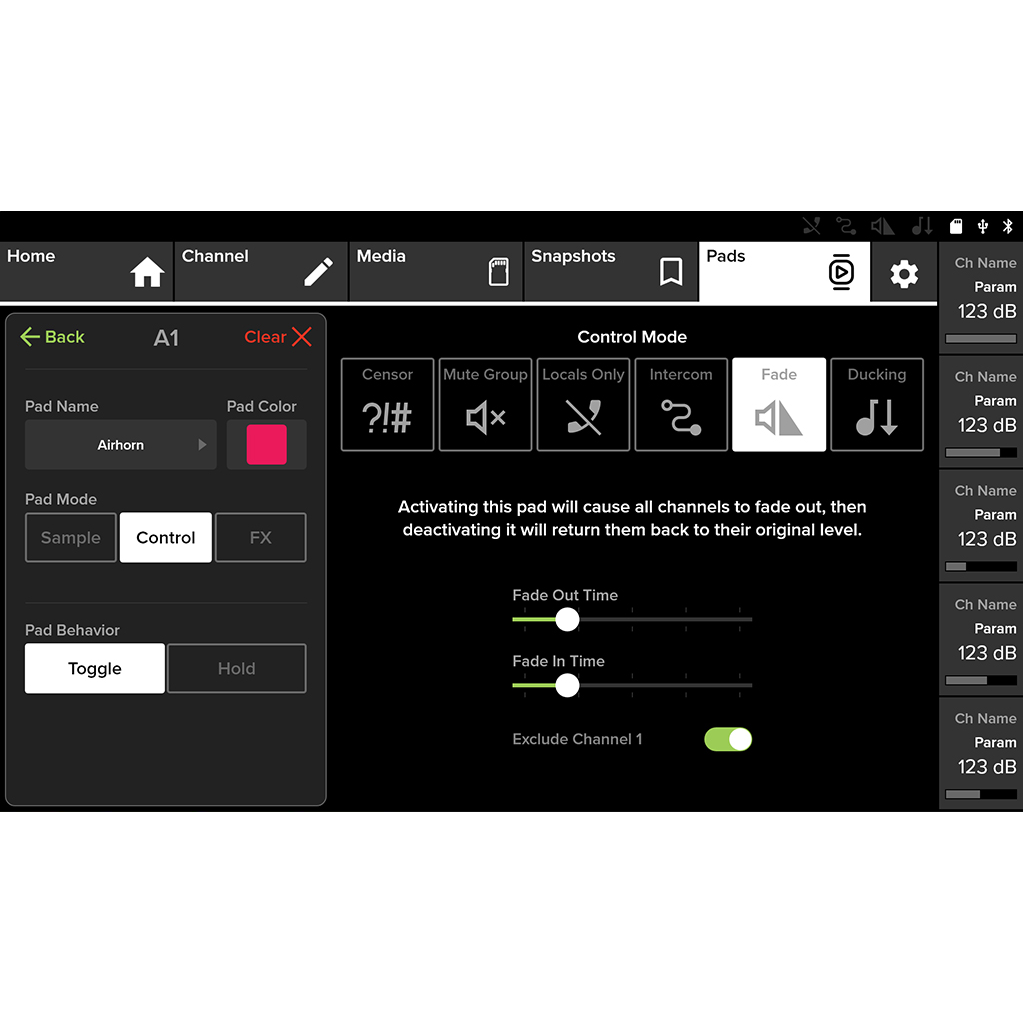

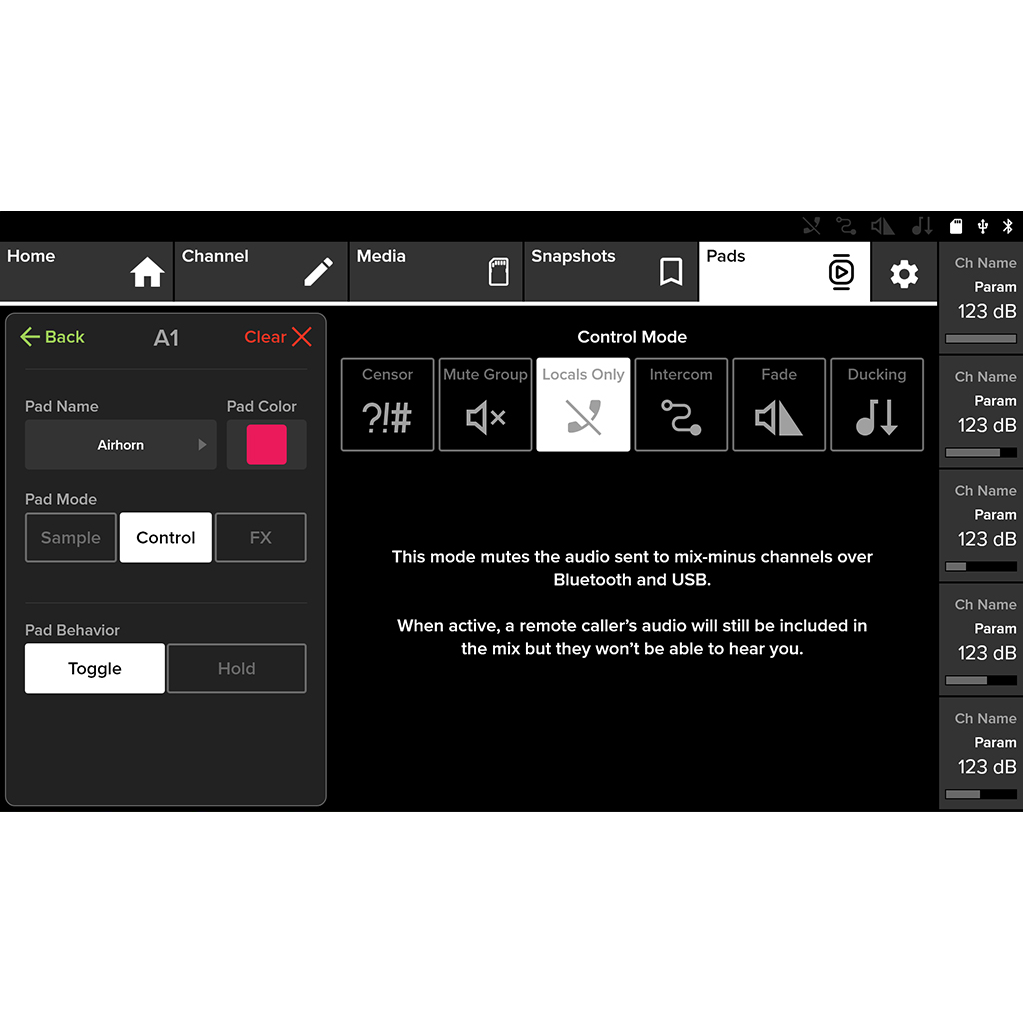

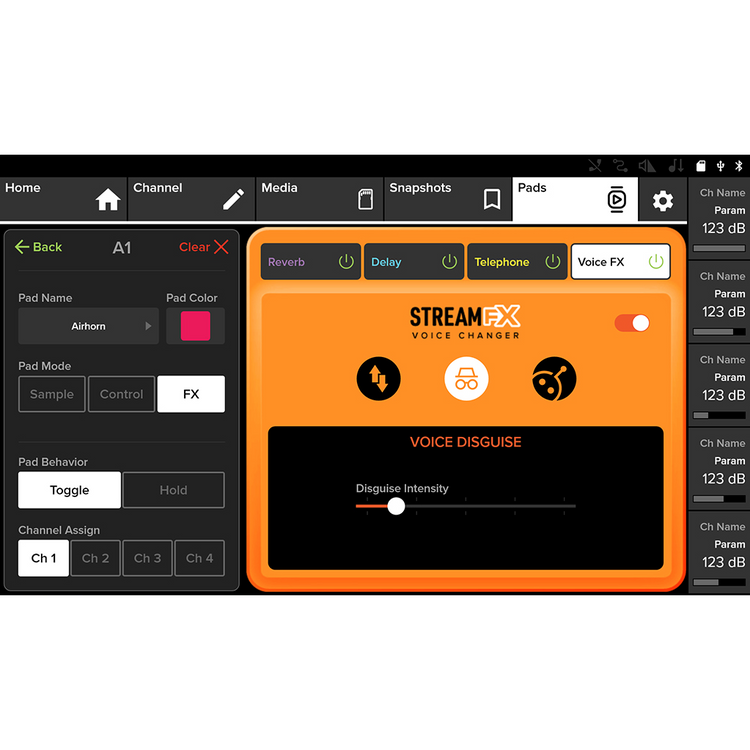

• 7" Full-Color Touchscreen

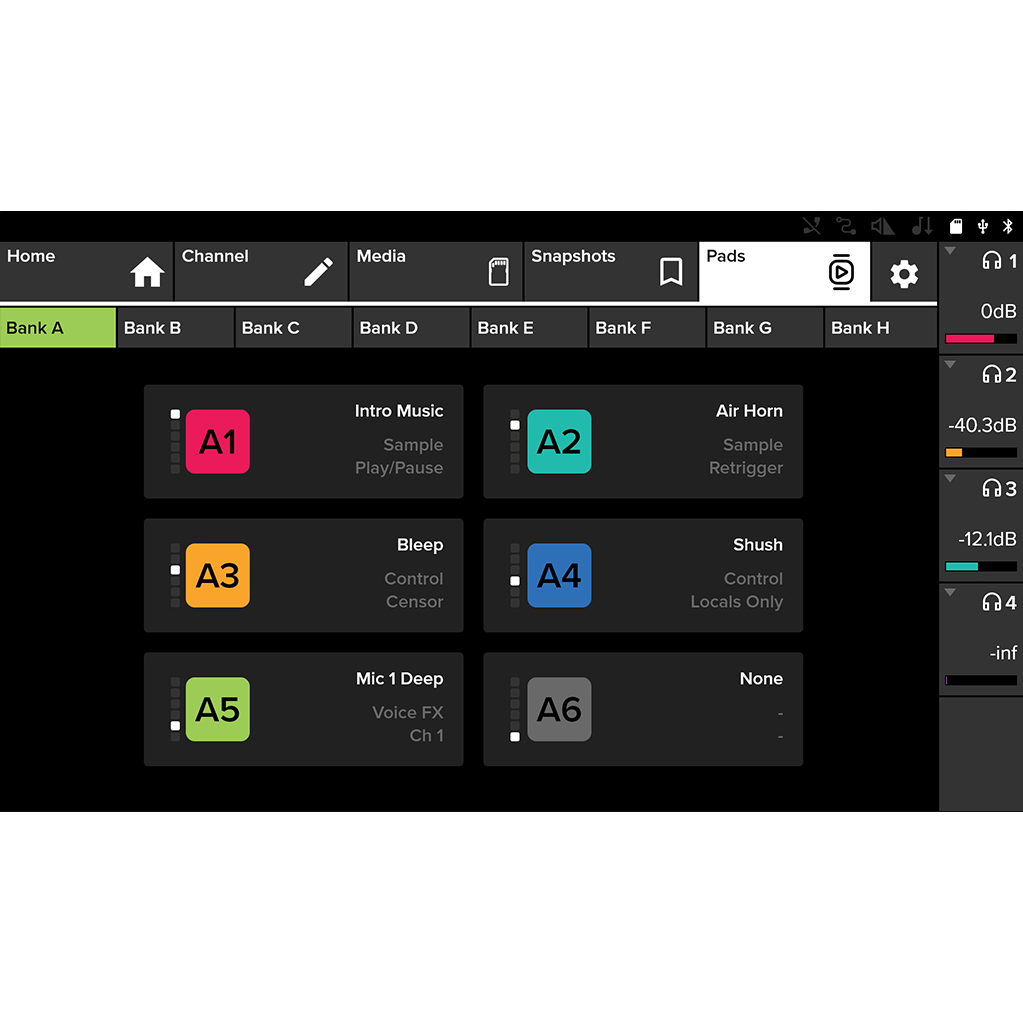

• 4 Quick Control Knobs and 6 Pads
• 2 Mic Preamps, Up to 80 dB Preamp Gain
• Ethernet Audio for 2 Streaming Setups
• Full NDI Integration
• USB, MicroSD, and Bluetooth Support

SPECIFICATIONS

• Max I/O Capacity: 5x Input / 4x Output
• Number of Analog Input Channels: 4 (2 Mono / 2 Stereo)
• Number of Mic Preamps: 2
• Number of Analog Output Channels: 3
• Mix Routing: 2x Mono Bus, 3x Stereo Bus
• Groups: No
• Presets: 3x Preset (Factory)
• Display: 7" LCD Touchscreen
• Display Resolution/Color: RGB Color
• Faders & Level Adjustment: 9 Non-Motorized Channel Knob
• Signal Processing:
  • Dynamic Processing: Compressor, Gate

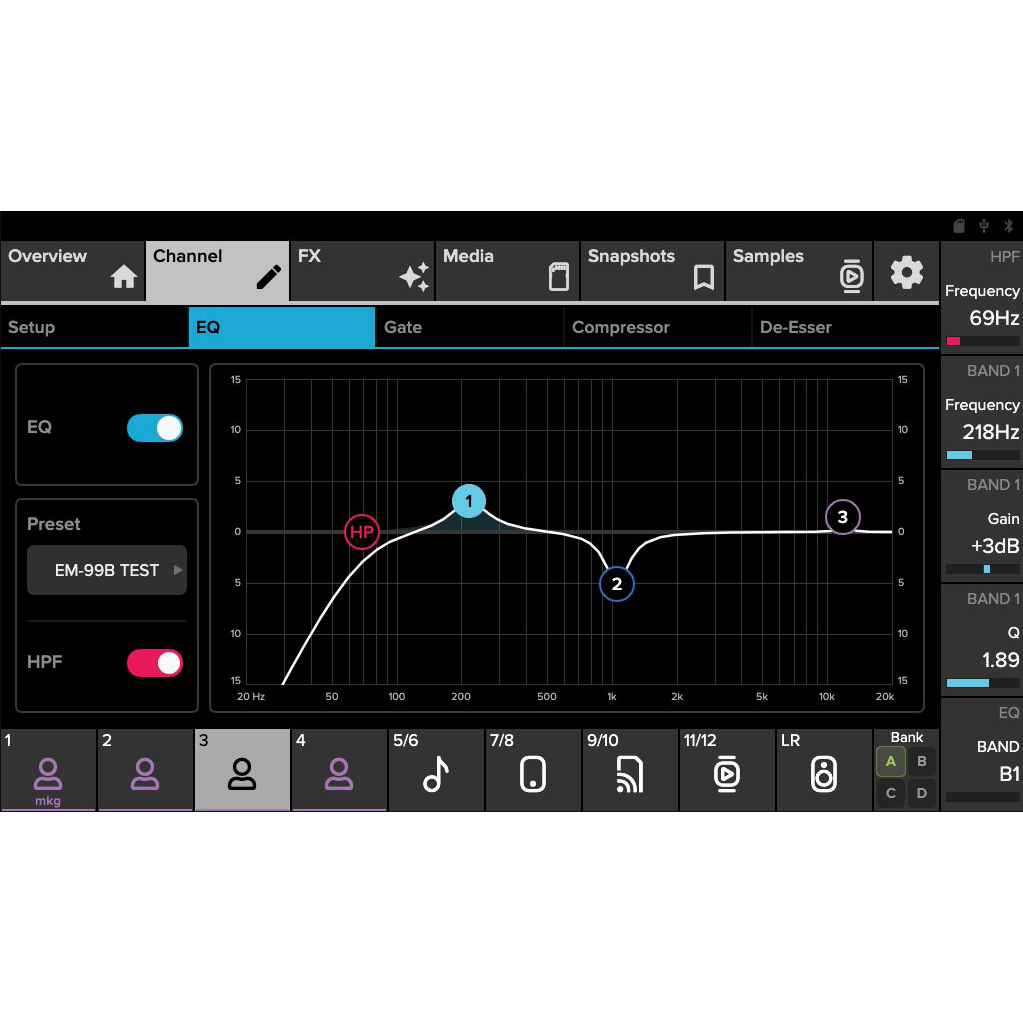

  • EQ: 3-Band Parametric
  • Filters: 1x High-Pass
  • Solo/Mute: Solo, Mute per Input Channel
  • Channel Output/Source Monitoring: AFL

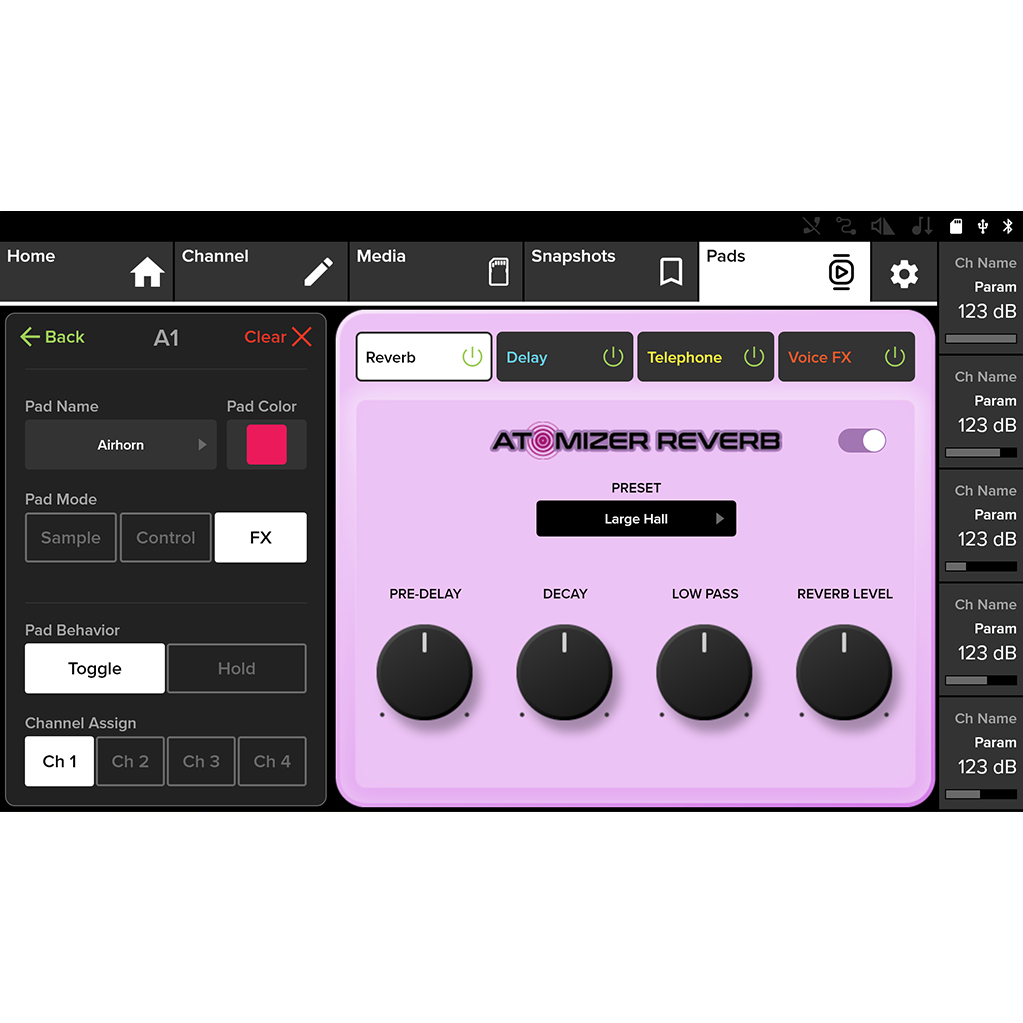

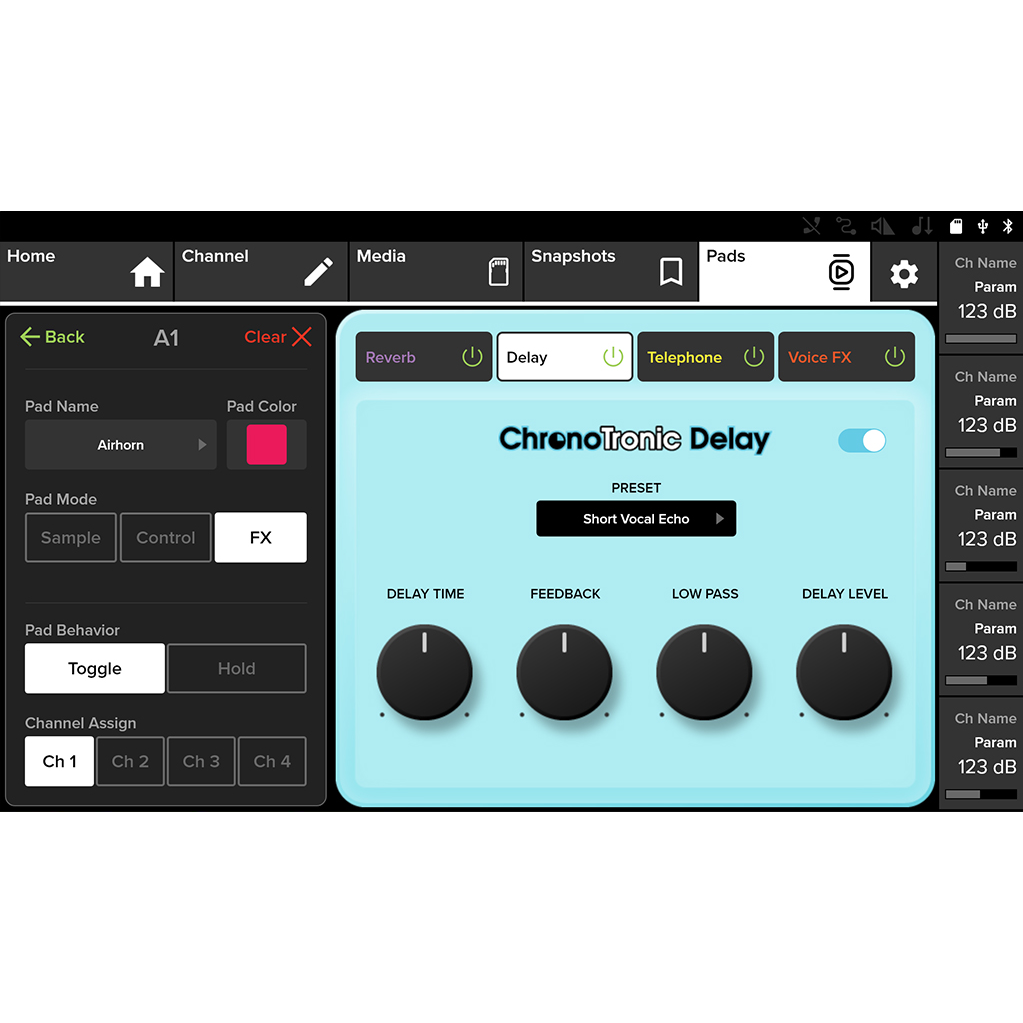

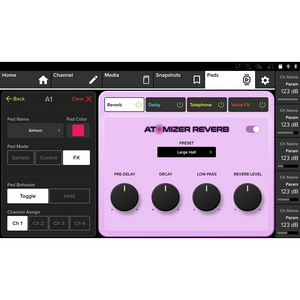

  • Built-In Effects: 1x De-Esser, 1x Reverb, 1x Delay
  • Real Time Analyzer: No
  • Automatic Mic Mixing: Yes
• Digital Audio:
  • Sample Rates: 48 kHz
  • Bit Depth: 24-Bit
  • Latency: 3 ms
• Connectivity:

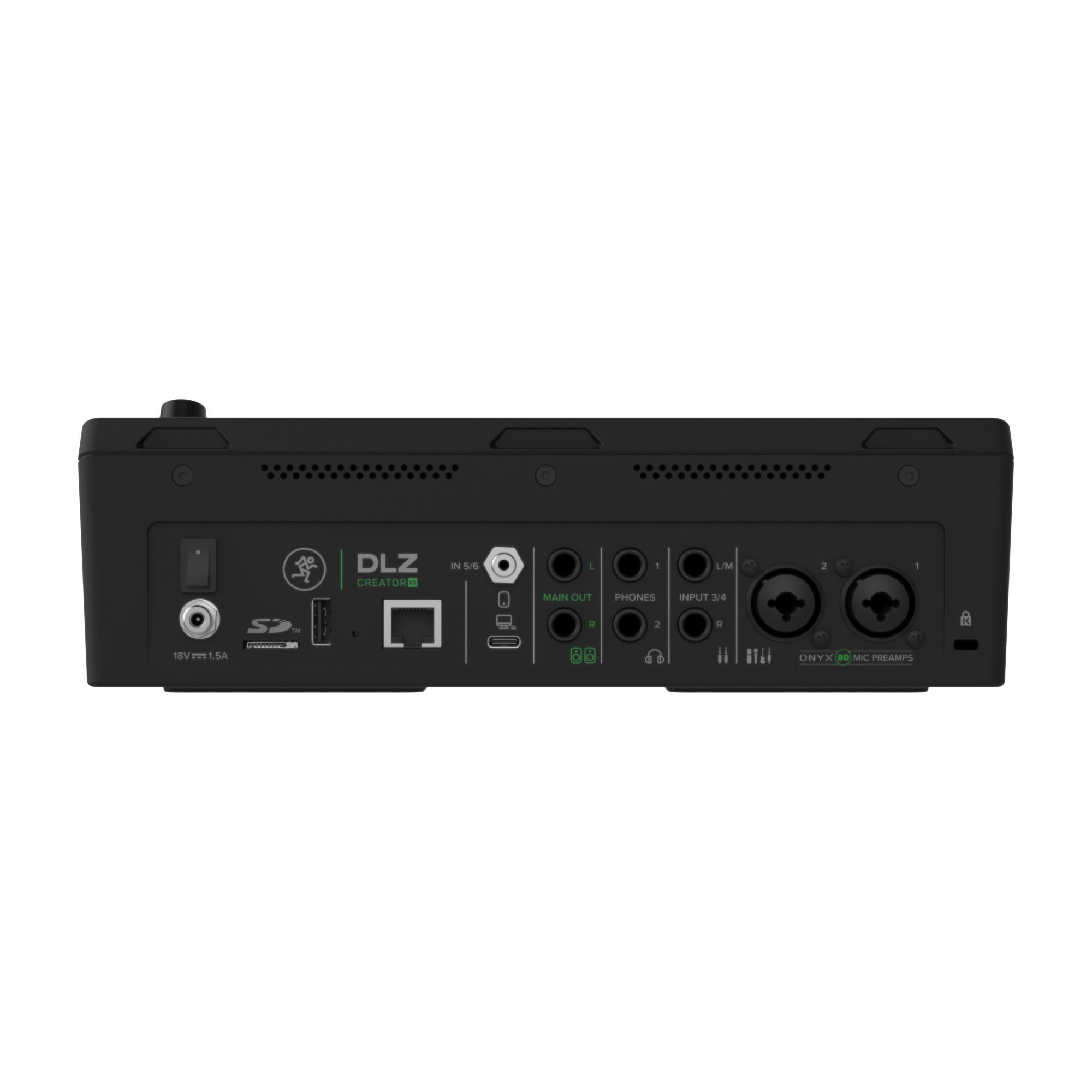

  • Analog Inputs: 2x Combo XLR-1/4" Balanced/Unbalanced Mic/Line/Hi-Z Input, 2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair), 1x 1/8" / 3.5 mm TRS Stereo Line Input
  • Analog Outputs: 2x 1/4" TRS Balanced/Unbalanced Line Output (1 Stereo Pair, Post-Fader), 2x 1/4" TRS Stereo Headphone Output (Post-Fader)
  • Digital I/O: 1x RJ45 Ethernet Input/Output (I/O, Link)
  • MIDI I/O: No
  • USB I/O: 1x USB-C (Audio Playback, Audio Streaming, Host Connection, Recording)
  • USB I/O Capacity: 14x Input / 4x Output
  • Wireless: Bluetooth *Built-In
  • Mobile App Compatible: No
  • External Display I/O: No
• Recording: Max Multitrack Recording: 4 Tracks, Media Support: SD, USB Drive
• Compatibility: macOS, Windows
• Power: DC Input Power: 18 VDC at 1.5 A
• Physical: Rack Mountable: No, Dimensions: 10.2 x 3.3 x 8" / 25.9 x 8.4 x 20.3 cm, Weight: 2.6 lb / 1.2 kg
• Packaging Info: Package Weight: 4.545 lb, Box Dimensions (LxWxH): 12.9 x 8.9 x 3.9"
